Metal Laser Cutting Services In Northwest Arkansas

Precision Fundamentals Of Metal Laser Cutting

Metal laser cutting concentrates a high energy beam through a lens to melt or vaporize metal along a programmed path. Assist gas clears molten material, cools the cut, and influences edge finish. The result is a narrow kerf, tight repeatability, and minimal heat affected zone when parameters are dialed in.

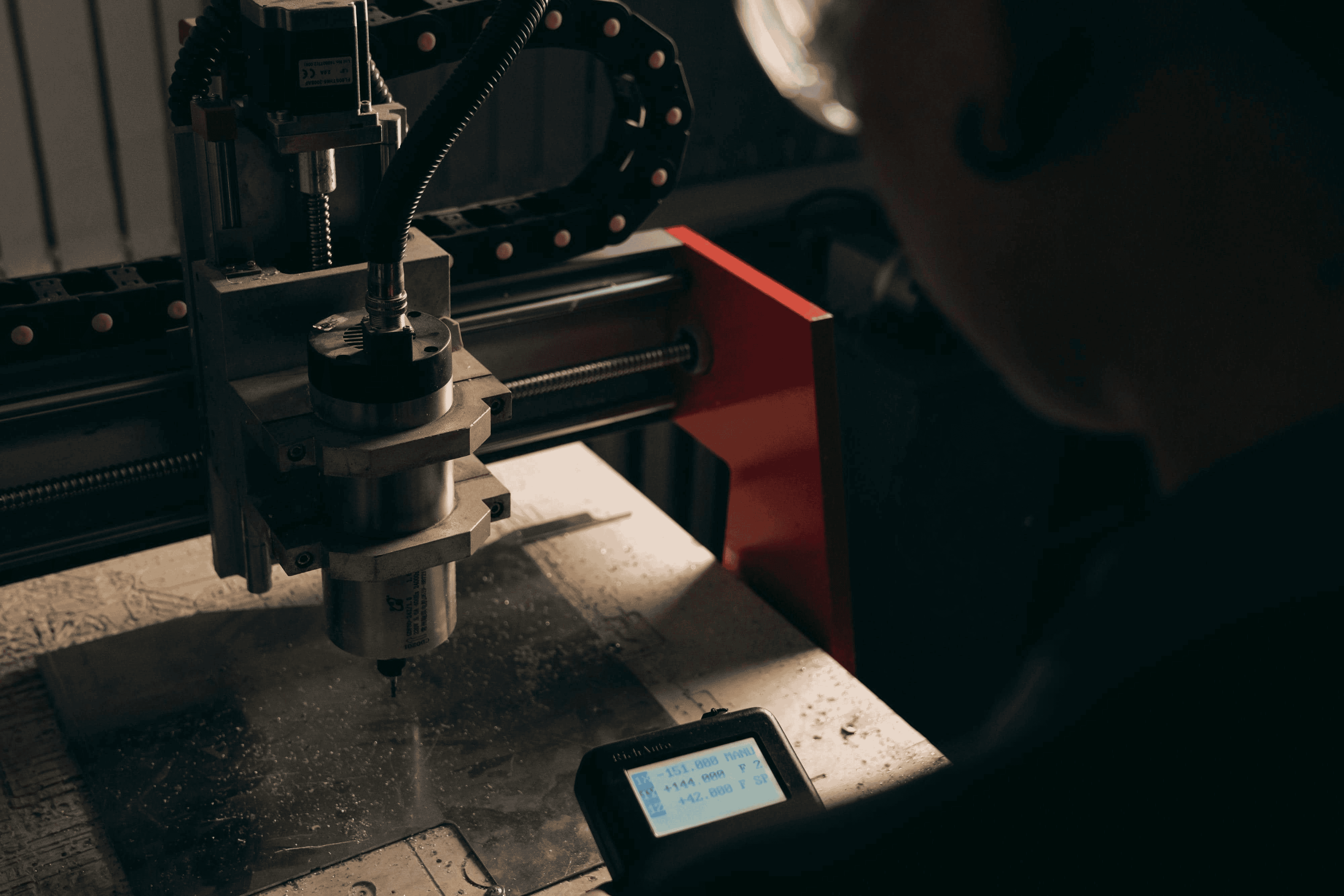

Metal laser cutting services in Fayetteville Arkansas for precise steel, stainless, and aluminum parts with clean edges and tight tolerances

Most shops run fiber sources today because they couple light efficiently into reflective materials and deliver impressive speed on thin to medium gauges. CO2 sources remain useful for thicker acrylic and some nonmetals, but fiber dominates metals due to lower maintenance and better power efficiency. Typical CAD to cut workflow moves from DXF or DWG to nesting software that optimizes sheet yield, adds lead ins, micro joints, and pierce points, then posts machine code.

Cut quality depends on beam parameters, focus offset, gas selection, and feed rate. Nitrogen produces bright, oxide free edges on stainless and aluminum. Oxygen promotes a faster cut in mild steel while introducing a small oxide layer that is often acceptable for painted parts. With correct settings, burr is minimal and secondary deburring can be light.

Fiber Versus CO2 Sources

Fiber systems deliver higher wall plug efficiency and excel on stainless and aluminum. They handle reflective materials without complex optics. CO2 machines can provide smooth edges on thicker nonmetals and have a wider focal tolerance, but upkeep is greater. For most metal parts, a modern fiber system gives the best balance of speed, cost, and consistency.

Capabilities, Materials, And Tolerances

Material capability varies by power level and nozzle strategy, but industry norms are clear. Thin gauge stainless and aluminum cut very fast with nitrogen. Mild steel can be processed with oxygen for speed or nitrogen for weld ready edges. On typical fiber machines in job shops, you will see reliable results across common sheet thicknesses used in brackets, panels, gussets, and enclosures.

Tolerances are driven by beam diameter, machine rigidity, and thermal input. Expect plus or minus five to ten thousandths of an inch on many flat parts in thin gauges, widening as thickness increases. Kerf width is narrow, often around ten to twenty thousandths, and should be accounted for in tight internal features. Holes smaller than one times material thickness may require drilling or reaming after cutting for precision fit hardware.

Surface finish and edge color depend on gas choice and speed. Nitrogen cutting yields clean, paint ready edges on stainless and aluminum. Oxygen cutting on mild steel may leave a darkened edge that still welds and coats well. For visibly exposed parts, a quick pass on a wide belt sander or tumbler removes micro burrs and rounds edges to a touchable finish.

Material Behavior And Edge Quality

Aluminum reflects energy and conducts heat quickly, so proper focus and gas pressure are critical to avoid dross. Stainless benefits from nitrogen to keep edges bright and corrosion resistant. Mild steel is forgiving and can be processed with either gas depending on cost and cosmetic goals. Fixture support matters for small parts to prevent tip up and scarring.

File Prep And Production Flow

Provide clean vector geometry with true arcs, no duplicate lines, and consistent layer naming. Indicate hole sizes, bend locations, and critical dimensions on a PDF print. Good shops nest parts to maximize sheet yield, apply micro tabs to keep parts stable, and track heat input to prevent warping on thin webs. Clear revision control avoids mistakes and accelerates repeat jobs.

Choosing A Laser Company Near Me

When you search laser company near me or laser cutting machine near me, evaluate more than raw wattage. Look for documented tolerances, example parts, and a quality plan that includes first article inspection. Ask about material inventory, lead time, and whether they offer deburring, tapping, bending, and welding so your parts move from flat to finished without delays.

A provider that understands fabrication will flag features that bend poorly, suggest reliefs, and adjust hole sizes for tapping. That saves money and eliminates rework. If your project is in Northwest Arkansas or Fayetteville Arkansas, a local team can shorten timelines and simplify handoffs.

For end to end solutions that include precision cutting, forming, and installation, explore Custom fabrication in Fayetteville. You can also review capabilities on our Fabrication services overview and learn how we approach quality on Why choose OZK Customs. This makes it easy to turn a design into a real part, whether you need one prototype or a short run.

When CNC Laser Cutter Near Me Makes Sense

Choose laser over waterjet when edge quality and speed on thin sheet take priority. Choose laser over plasma when you need tight holes, fine features, and low taper. Laser pairs well with forming and welding, giving you a straight path from flat blank to a finished bracket, panel, or enclosure.

Bring your design to life in Fayetteville Arkansas with a team that treats your drawings as the start of a seamless build. If you already have DXF files, send them along with a PDF print, material, thickness, and quantity. We will confirm tolerances, finishing, and delivery so your metal parts arrive ready for assembly.
