Custom Metal Enclosures Built For Real World Use

What Defines Custom Metal Enclosures

Custom metal enclosures protect electronics, controls, batteries, and sensitive assemblies from the elements, impacts, and interference while providing safe access for service. The right custom enclosures start with use case clarity. Indoor automation needs clean cable management and easy panel access. Outdoor telecom boxes demand weather sealing, UV stable finishes, and secure mounting. Medical and laboratory housings prioritize cleanliness, smooth edges, and consistent surface finish for wipe downs and inspection.

Material selection drives performance. Aluminum offers light weight, efficient heat dissipation, and excellent corrosion resistance when anodized or powder coated. Stainless steel brings strength and chemical resistance for food processing or coastal sites. Cold rolled steel is cost effective, strong, and pairs well with durable powder coat systems. Galvanneal can add zinc based protection under paint for harsh environments.

Form factor and thickness matter. Flat covers resist bending less than bent channels or flanges. Strategic hems, ribs, and formed returns increase stiffness without excessive weight. Hardware choice influences serviceability. Captive fasteners, threaded inserts, and quarter turn latches enable repeat access without stripping threads in sheet metal. Hinges with detents or lift off pins aid maintenance where uptime is critical.

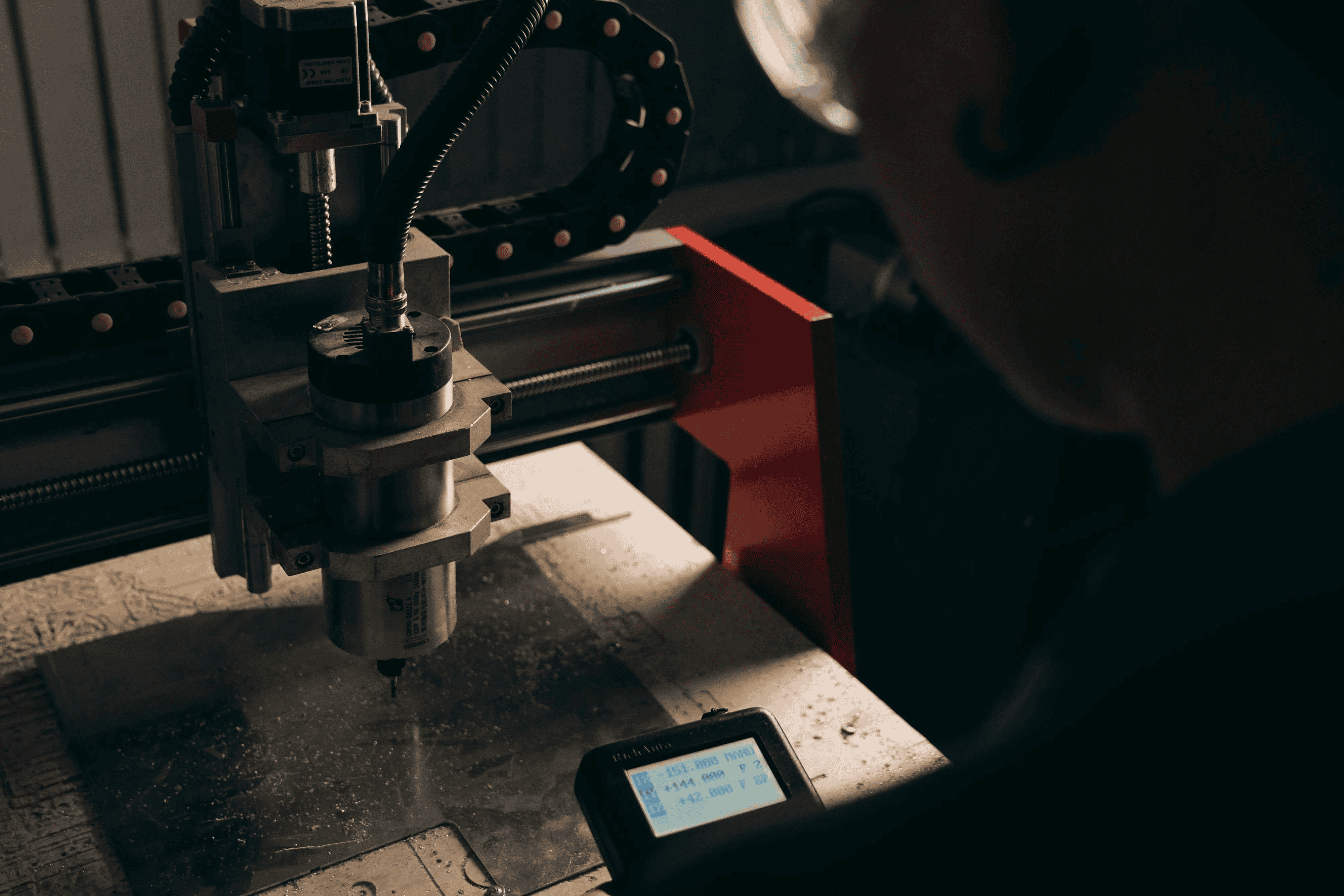

Custom metal enclosures with precision fit and weather sealing built in Fayetteville Arkansas

Design Considerations That Matter

Custom enclosure design starts with constraints. Define target standards early, such as NEMA Type 3R for rain shedding, NEMA Type 4X for washdown and corrosion resistance, or an IEC 60529 ingress protection rating like IP66 for dust tightness and powerful water jets. Those choices cascade into gasket profiles, seam strategies, and hardware selection. Foam in place gaskets fit complex perimeters and reduce assembly time. Silicone or EPDM gasket strips resist temperature swings and compression set.

Thermal management is more than vents. Fan filters, drip shields, and baffles maintain airflow while protecting against water intrusion. For passive cooling, use thicker backplates, bonded heat sinks, or conductive pads that transfer heat to the enclosure wall. Avoid hot spots by spacing power components and routing air from intake to exhaust without dead zones.

Electromagnetic compatibility depends on continuity. To create a reliable Faraday cage, maintain metal to metal contact across panels using conductive gaskets, star washers, and ground straps. Avoid paint build up at bonding points and specify masking in the coating process where electrical continuity is required. For high frequency noise, tighter seams and shorter grounding paths improve shielding effectiveness.

Usability counts. Labeling, panel layout, and service clearances should be designed before metal is cut. Door swing direction, handle ergonomics, and cable bend radius affect real world installation. Include removable gland plates for cable entry, strain reliefs to protect terminations, and knockouts only where needed to preserve sealing.

Materials, Finishes, And Testing

Finish selection protects aesthetics and function. Powder coating provides durable color and texture with excellent chip resistance. Anodizing on aluminum creates a hard, corrosion resistant surface with consistent appearance. Stainless steel may need passivation to remove free iron and enhance corrosion resistance after fabrication. In coastal or chemical exposure, pair material and finish to the environment and validate with salt spray testing per ASTM B117 when appropriate.

Manufacturing processes shape precision. Laser cutting or CNC punching creates accurate profiles and repeatable hole patterns. Brake forming with proper tooling maintains consistent bend radii and prevents cracking on tight bends. TIG welding and spot welding close seams while minimizing distortion when fixtured properly. After welding, deburring and edge rounding improve safety and gasket seating. Quality hardware like self clinching fasteners prevents thread pullout and speeds assembly.

Verification brings confidence. Dimensional inspections check hole alignment and enclosure squareness. Water spray or dunk testing can validate sealing before production. Thermal cycling, vibration checks, and UV exposure testing reveal weak points before they reach the field. Documentation should include drawings with tolerances, a bill of materials, finish specifications, and an assembly sequence to support repeatability.

When projects move from prototype to production, design for manufacturability reduces cost and lead time. Combine parts where possible, standardize hardware, and simplify weldments with smart bends and tab and slot features that self locate during assembly. Early design reviews with a fabricator shorten the path to a clean, reliable build.

Ratings And Environments

• Indoor light duty: prioritize quick access, labeling, and cable routing.
• Outdoor heavy duty: seal for wind driven rain, add UV stable finishes.
• Washdown zones: pick stainless and continuous gaskets, protect vents with labyrinth paths.

Hardware And Access

• Captive screws and inserts avoid lost hardware during service.
• Lift off hinges speed field replacement and reduce downtime.
• Quarter turn latches provide tool based security and quick access.

From Concept To Prototype

• Start with a parametric model and flat patterns to validate fit.
• 3D print mockups for human factors before cutting metal.
• Pilot builds confirm assembly order, gasket compression, and airflow.

Build It With A Proven Fabricator

Custom metal enclosures succeed when design intent meets accurate fabrication. If you want help translating requirements into drawings and parts that fit, explore our custom fabrication. For a deeper look at forming, welding, and finishing capabilities, visit our fabrication services. If you are choosing a partner for a critical program, learn more at why choose OZK.

OZK Customs designs and fabricates custom enclosures in Fayetteville Arkansas for outdoor telecom, off grid power, vehicle mounted controls, and mobile work platforms. We bring CAD modeling, CNC cutting, precision forming, TIG welding, gasketing, and coatings together so your custom enclosure design meets target NEMA or IP performance. Whether you need aluminum for thermal management, stainless for washdown, or steel with powder coat for rugged field use, we can prototype fast and guide you into production.

Bring your drawings, sketches, or requirements, and we will engineer the details that matter: hinge loads, latch spacing, gasket compression, grounding, labeling, and mounting. Let’s turn your custom enclosures concept into a field ready solution built in Fayetteville Arkansas.
