Precision Metal Fabrication For Exacting Builds

What Precision Metal Fabrication Really Means

Precision metal fabrication is the disciplined practice of turning sheet and plate into repeatable parts that meet tight dimensional targets. It relies on controlled processes, calibrated tooling, and inspection to ensure every bend, hole, and weld lands where the print requires. Where general fabrication focuses on function, precision work adds quantifiable accuracy so parts assemble cleanly and perform reliably under load.

At its core, the craft blends material science, production engineering, and metrology. The workflow spans cutting, forming, joining, and finishing with careful documentation at each step. Success is measured in tolerances, surface quality, and consistency across batches rather than single part success. The outcome is predictable parts that fit without rework, reducing total project time and cost.

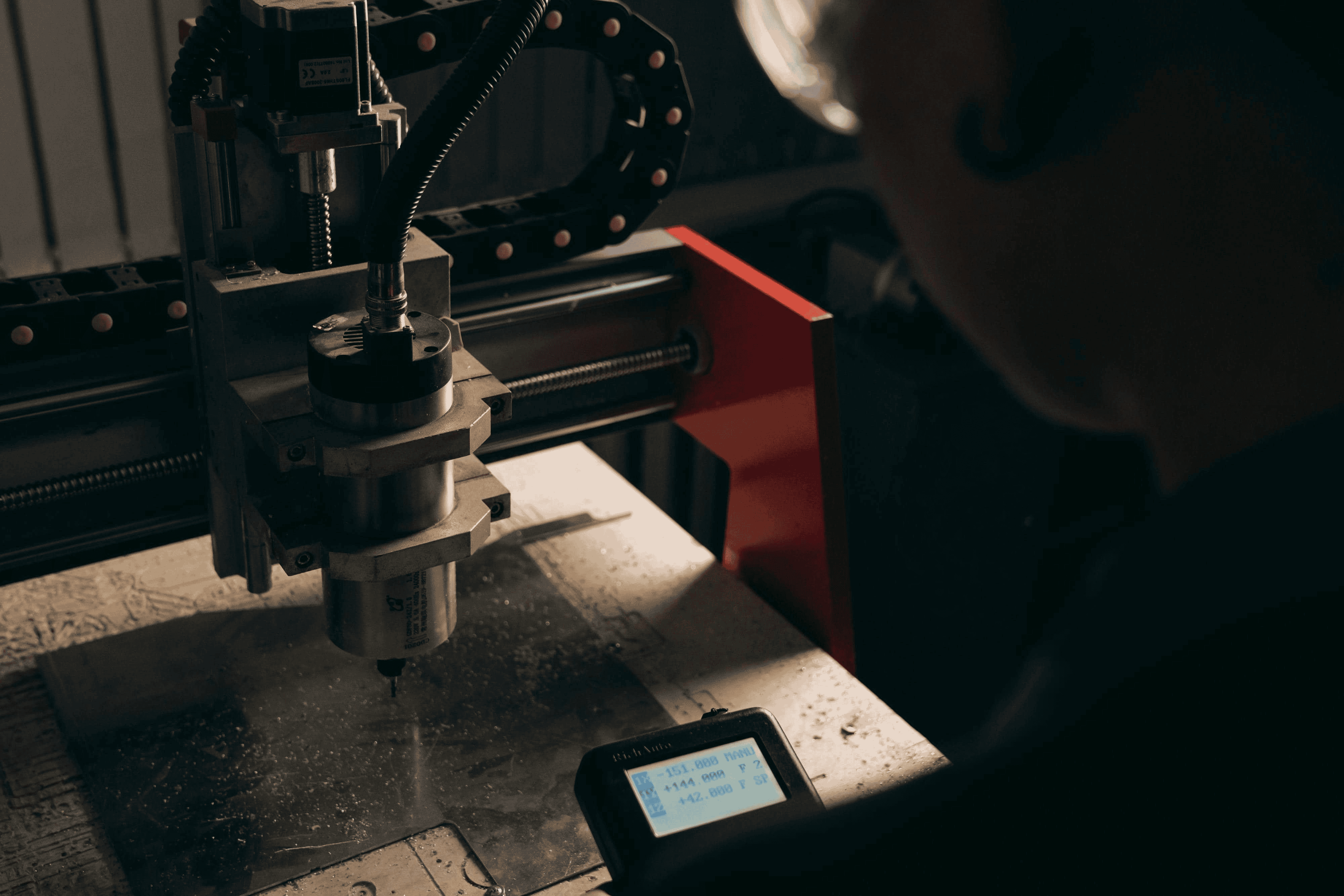

Precision metal fabrication shop forming and inspection for tight tolerances in Fayetteville Arkansas by OZK Customs.

Processes That Drive Accuracy In Sheet Metal

The journey starts with cutting. Laser cutters produce narrow kerfs and sharp geometry, ideal for tight internal features and clean edges that form well. Waterjet cutting avoids heat input, which helps with materials sensitive to heat affected zones. CNC punching excels on high volume panels with louvers, knockouts, and forms, especially when combined with laser for hybrid nests that optimize cost and precision.

Forming accuracy depends on press brake fundamentals: correct tooling, die width to thickness ratio, bend allowance, and K factor selection. Air bending requires compensation for springback, while bottoming and coining achieve tighter angle control at the expense of tool wear and material stress. Grain direction matters; bending against the grain reduces cracking risk and improves repeatability. Tooling alignment, crowning, and backgauge calibration maintain angle and flange length within spec.

Welding and joining introduce heat and distortion, so fixturing is critical. Stitch sequences, skip weld patterns, and chill bars help control movement. For thin gauge, TIG and micro MIG provide neat beads with limited heat input, while spot welding rapidly joins overlapping panels with excellent repeatability. Hardware installation using self clinching fasteners yields strong, flush threads without added weld heat, preserving flatness.

Finishing steps close the loop on both function and appearance. Deburring prevents assembly damage and improves coating adhesion. Media finishing and vibro tumbling ease sharp edges. Powder coat and anodize demand clean surfaces and consistent masking to protect threads and mating faces. Throughout, precision sheet metal fabrication relies on inspection benches, height gauges, pin gauges, and CMM probes to verify that the process produced the intended result.

Tolerances And GD&T Essentials

Print clarity drives precision. Well defined datums and GD&T callouts for position, flatness, and parallelism communicate what must be held and what can float. Understanding stack up across bends and weldments helps designers place critical features away from bend lines and heat zones. Reasonable tolerance bands reduce scrap while still ensuring final function.

Material Choice And Thickness

Aluminum bends differently than steel, and stainless behaves differently than both. Temper, thickness, and grain direction influence minimum bend radii, springback, and cracking risk. Selecting the right alloy and temper for the intended finish and environment prevents surprises and preserves tolerance control through finishing.

Inspection And Quality Control

Inspection plans define checkpoints that match risk. First article inspection validates the process, in process checks guard against drift, and final inspection confirms compliance. Calibrated tools, fixture based checks, and measurement records provide traceability. When needed, statistical sampling keeps production efficient without sacrificing confidence.

Turn Precision Into Parts You Can Trust

Designing for manufacturability makes precision affordable. Space holes at least one material thickness from edges, add bend reliefs to prevent tearing, and keep tight tolerances off features near bend lines. Standardize radii to match common tooling. Use tabs and slots to self locate parts before welding, and choose self clinching hardware where threads are needed in thin gauge. These small choices simplify forming and reduce distortion, which protects tolerances downstream.

When your print is ready for production, choose a shop that treats precision as a system, not a step. That means thoughtful DFM, accurate nesting, calibrated brakes, controlled weld sequences, and inspection that matches the critical features. Whether your parts support enclosures, brackets, panels, or integrated assemblies, precision sheet metal fab should deliver pieces that fit first time with clean cosmetics and reliable coatings.

OZK Customs builds precise metal components that stand up to real use. Our team in Fayetteville Arkansas handles cutting, forming, welding, and finish prep with careful attention to material behavior and downstream assembly. Explore our Custom fabrication capabilities, see specific options in Fabrication services, and learn how we approach quality and communication in Why choose OZK.

If your project calls for tight tolerances, consistent bends, and coatings that last, bring us your model and print. We can review tolerances, advise on hardware and bend strategy, and produce parts that assemble cleanly. From one offs to repeat runs, we make precision sheet metal fabrication practical and predictable so your design performs as intended.
