Custom Wiring Harness Design For Vehicles

What A Custom Wiring Harness Really Does

A custom wiring harness organizes every power and signal path into a single routed loom designed for the vehicle and its accessories. Instead of random add ons, circuits are bundled, protected, and labeled so current flows safely and predictably. This reduces voltage drop, interference, and heat while making future troubleshooting straightforward. In complex builds with lighting, compressors, inverters, and communications gear, a tailored harness acts like the nervous system that keeps everything working together.

Core Components Inside The Loom

A well planned harness includes primary power feeds, branch circuits, ground paths, and signal lines with appropriate shielding. Fuse blocks and relay modules centralize protection and switching. Weather sealed connectors prevent corrosion at terminations that see dust, mud, or washdowns. Wire labeling and color standards help techs identify a circuit in seconds. Strain relief and abrasion guards keep movement and vibration from weakening the copper over time.

Design Choices That Make Or Break Reliability

Wire gauge must match current draw, circuit length, and allowable voltage drop. Oversizing adds weight and cost while undersizing causes heat and nuisance failures. Proper fusing is placed as close to the power source as practical to protect the wire, not just the device. Relays move high current switching off small control switches to extend their life. Routing avoids sharp edges, exhaust heat, and pinch points, with service loops where components may be removed.

Connectors, Sealing, And Serviceability

Connector selection is critical. Sealed plug systems with positive locks maintain conductivity in wet or dusty environments, and terminal crimp quality often determines long term reliability. Heat shrink with adhesive backs up seals at splices, while split loom or braided sleeves add abrasion resistance. Good practice includes accessible junction points and labeled breakouts so components can be removed without cutting the harness.

Noise, Data, And Modern Vehicle Networks

Accessory wiring often lives beside sensitive electronics. Twisted pairs for data lines and shielded cable for audio or RF sensitive circuits reduce noise. CAN and LIN networks require careful routing and termination to maintain signal integrity. Grounding strategy matters as much as power delivery, with bonded chassis points and star grounds to prevent loops. Thoughtful segregation of high current and low level signal paths keeps interference at bay.

Validation, Documentation, And Growth Room

Before a harness ever sees the road, continuity checks, insulation resistance tests, and load verification confirm the design. Circuit mapping and as built drawings document routing, fuse ratings, and connector pinouts. Labels at both ends of each run save hours during upgrades or diagnostics. Planning headroom into power distribution allows future accessories to be added without re wiring the entire system, which protects both the budget and the schedule.

Where Custom Looms Shine In The Real World

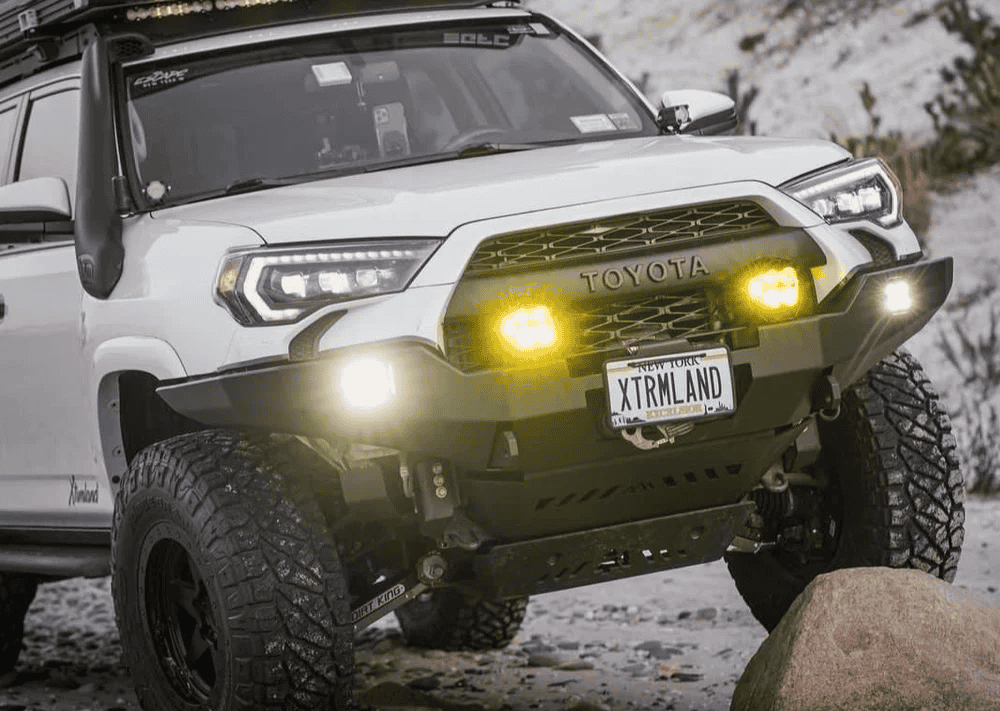

Off road lighting banks, winches, air systems, fridges, cabin heaters, comms, and solar charging all demand clean power and smart switching. A purpose built harness keeps these systems from fighting each other. Dual battery setups with isolators or DC to DC chargers benefit from correctly sized cabling and clear fault protection. In commercial and municipal use, uptime matters, and a labeled, tested harness reduces downtime when a fuse or relay needs attention.

Ready For A Cleaner Install

If your build list includes auxiliary lighting, onboard air, power management, or data integrations, a custom wiring harness is the most direct path to safety and reliability. It tames the clutter, shortens your diagnostic time, and gives every amp a safe route home.

OZK Customs designs and installs harnesses that fit the way you travel and work. From trail ready trucks to full adventure vans and commercial platforms, we route, protect, and label circuits for clean service and future growth. Explore our approach to capable rigs on Overland rigs, and see how a Custom overland upfit comes together with proper power distribution. If you want to understand our build process and standards, visit Why choose OZK Customs.

We build in Fayetteville, Arkansas, and hand off every project with an orientation so you know exactly how your system works. Tell us what you need to power on day one and what you plan to add next. We will design a harness that respects both.
